Variable Diameter Shaped

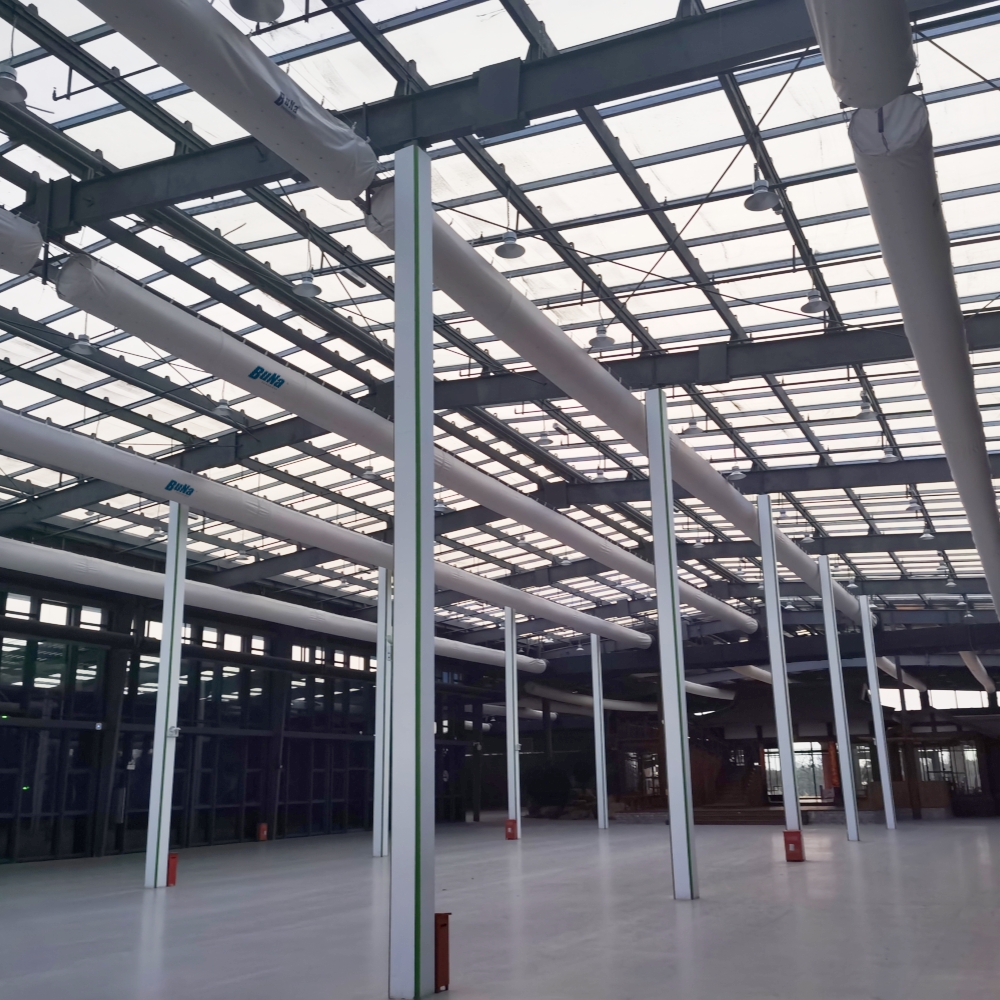

Air Duct: Optimized for Efficient Air Distribution in Commercial and Industrial Spaces This innovative variable diameter shaped air duct is engineered to deliver consistent airflow across extended lengths, ensuring optimal ventilation performance in large-scale environments. Designed with adjustable diameters along its length, this
Fabric Air Duct balances pressure and velocity from inlet to outlet—critical for maintaining effective air delivery in spaces where traditional rigid ducts often fail due to uneven distribution. By gradually reducing the diameter toward the end of the duct run, it compensates for natural airflow loss, preventing weak airflow at terminal points and enabling precise air targeting. Key Features: - Adjustable cross-sectional profile for dynamic airflow control - Available in single-layer or rubber-insulated configurations for thermal efficiency - Lightweight, flexible fabric construction reduces installation complexity - Customizable shapes and sizes to suit architectural constraints - High durability with resistance to moisture, mold, and UV degradation - Integrated insulation options for noise reduction and energy savings Detailed Description: Unlike conventional air duct systems that rely on uniform dimensions, this variable diameter air duct leverages aerodynamic principles to maintain a steady flow rate throughout the entire system. As air travels through the duct, frictional losses naturally occur, particularly in longer runs. Without adjustment, these losses cause reduced velocity at the far end—resulting in poor air circulation and ineffective climate control. This product solves that issue by tapering the duct’s diameter progressively, which increases velocity near the terminus while maintaining balanced airflow at the start. The result is a more uniform temperature distribution, improved indoor air quality, and enhanced occupant comfort. Whether used in warehouses, manufacturing facilities, gymnasiums, or retail centers, this duct design ensures efficient air delivery without requiring additional fans or blowers. It also supports modular installations, making it ideal for retrofitting existing buildings or integrating into new construction projects. Ideal Use Cases: Perfect for commercial HVAC applications such as office complexes, industrial workshops, exhibition halls, and cold storage units. Its ability to distribute conditioned air evenly makes it especially valuable in high-ceilinged or open-plan spaces where traditional ductwork struggles with airflow stratification. Additionally, the insulated variant provides thermal protection, minimizing heat gain or loss in sensitive environments like pharmaceutical labs or food processing plants. Customer Feedback: Users praise the ease of installation and noticeable improvement in air consistency compared to standard round or rectangular ducts. Many report reduced energy consumption due to fewer compensatory adjustments needed in their
Hvac Systems. One facility manager noted, “We saw immediate improvements in air reach after installing the tapered
Fabric Duct—it no longer feels like half the room is unaffected.” Frequently Asked Questions: How does a variable diameter air duct improve airflow uniformity? By adjusting the internal diameter based on distance from the supply point, it counteracts pressure drop caused by friction, ensuring even air distribution from beginning to end. Can this duct be customized for specific room layouts? Yes, each unit can be tailored to match unique building geometries, including curved paths, multiple outlets, and irregular ceiling heights. Is the insulation layer effective in noisy environments? The composite insulation not only enhances thermal performance but also dampens sound transmission, making it suitable for offices and hospitals where acoustics matter. What materials are used in construction? High-grade polyester fabric with anti-static properties and optional rubber-based insulation layers ensure longevity, safety, and compliance with international fire codes.
