Understanding Fabric Air Duct Air Supply Types for Optimal Ventilation Solutions

Fabric air ducts have become a preferred choice in modern Hvac Systems due to their flexibility, efficiency, and aesthetic appeal. These textile-based ventilation solutions offer three distinct air distribution methods—low-speed, medium-speed, and high-speed—each tailored to specific environmental conditions and performance requirements. Whether you're designing an industrial facility, food processing plant, or large storage area, selecting the right type ensures optimal airflow, temperature control, and indoor air quality.

Key Features of Fabric Air Duct Systems:

• Uniform air diffusion through micro-perforations or specialized nozzles
• Customizable airflow patterns based on application needs
• Energy-efficient operation with reduced pressure loss
• Dust filtration capabilities up to 99% efficiency (counting method)
• Low maintenance and easy installation compared to traditional metal ductwork

Detailed Description of Air Supply Methods:

The low-speed fabric Air Duct is ideal for environments where gentle air movement is required—such as offices, schools, or residential spaces. It operates at an average velocity of 0.05–0.5 m/s, allowing air to evenly diffuse through microscopic pores along the fabric surface. This method ensures consistent thermal comfort without creating drafts. However, because of its limited throw distance, spacing between units must be kept short to maintain uniformity across the room. For higher volume demands, larger surface areas are recommended to compensate for lower air velocity per unit area.

The medium-speed Fabric Duct system integrates filtration properties that make it suitable for cleanroom-like applications such as cold storage facilities, pharmaceutical manufacturing, and low-temperature food production lines. The material effectively captures airborne particulates, achieving over 99% filtration efficiency using particle counting methods. This results in controlled ambient cleanliness levels below Class 100,000, meeting stringent hygiene standards while maintaining energy savings and minimal noise disruption.

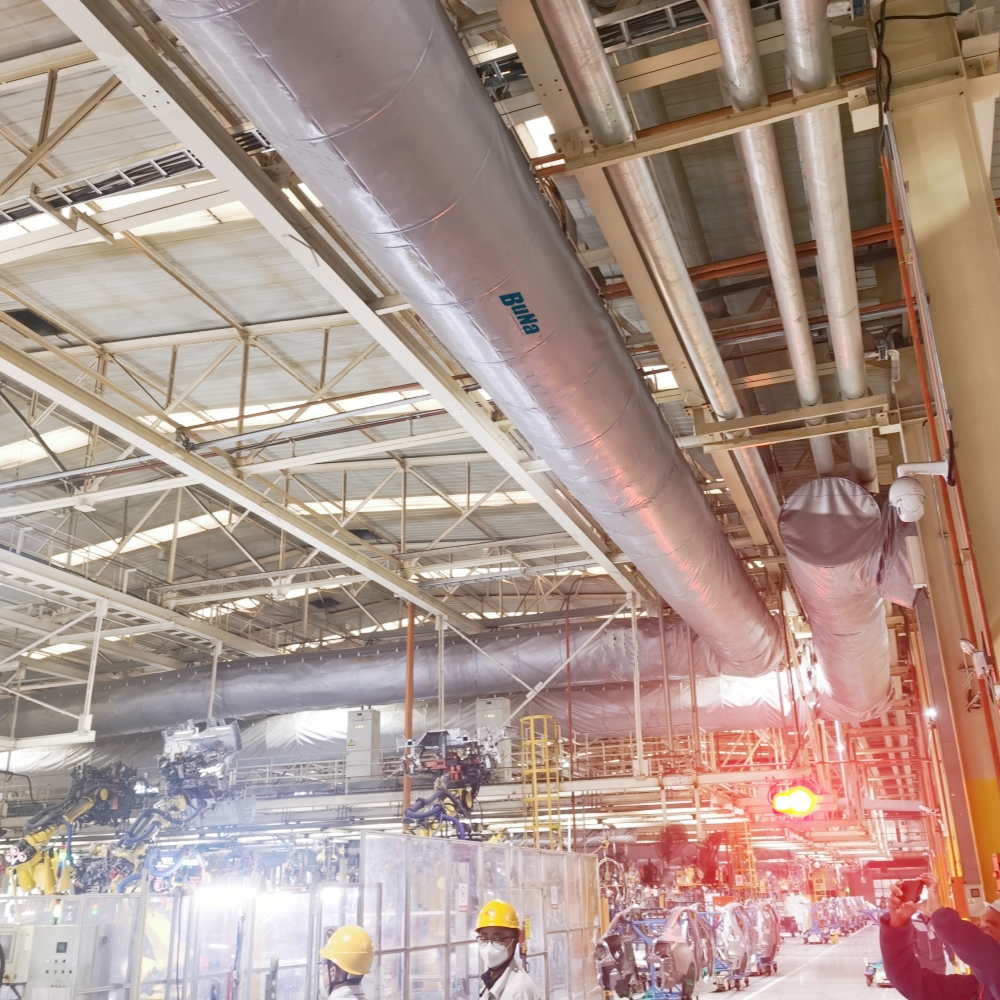

In contrast, the high-speed fabric air distribution solution employs strategically placed directional nozzles rather than surface permeation. With velocities ranging from 10 to 15 meters per second, these systems can entrain up to 40 times the surrounding air mass, making them highly effective for high-ceilinged spaces like warehouses, hangars, and distribution centers. The momentum-driven airflow provides rapid mixing and even temperature distribution, reducing stratification issues commonly found in tall-volume buildings. Due to their extended reach, fewer units are needed, simplifying design and installation.

Applications Across Industries:

These versatile textile ducts serve diverse sectors including commercial kitchens, cold chain logistics, pharmaceutical labs, manufacturing plants, and retail environments. In food processing facilities, they enhance hygiene by minimizing dust accumulation and supporting ISO-compliant air quality. In warehouses and industrial halls, high-speed variants improve air turnover rates while reducing fan energy consumption. Their modular nature allows for quick adaptation during renovations or expansions, offering long-term cost benefits over conventional metal ducting.

User Feedback Highlights:

Users consistently report improved air distribution uniformity, quieter operation, and easier maintenance when switching from rigid ducts to fabric alternatives. One facility manager noted that after installing medium-speed ducts in a chilled warehouse, dust buildup decreased significantly, leading to fewer cleaning cycles and better product shelf life. Another user praised the high-speed configuration in a large distribution center, stating that temperature gradients vanished within hours of startup, improving worker comfort and operational efficiency.

Frequently Asked Questions:

What makes fabric air ducts different from metal ducts? Fabric systems provide more uniform air delivery, reduce pressure drop, and require less structural support, resulting in lower overall installation costs.

Can I install this myself? While professional installation is recommended for complex layouts, many standard configurations are designed for DIY setup with proper guidance.

Are fabric ducts suitable for humid environments? Yes, specially treated fabrics resist mold and mildew growth, making them appropriate for damp or high-humidity settings such as refrigerated storage or food processing zones.

How often do I need to clean them? Cleaning intervals vary depending on usage and environment but typically range from every 6 to 12 months. Most models are machine-washable or can be wiped down easily.

For those seeking efficient, adaptable, and hygienic ventilation options, fabric air ducts represent a forward-thinking investment in building performance and occupant well-being. By understanding the differences between low-, medium-, and high-speed air supply forms, engineers and facility managers can select the best solution for any space, ensuring both compliance with industry standards and superior indoor air quality outcomes.
